Electric Mountain Bikes: 16 Trail Models
Hardtail and full-suspension trail bikes in alloy and carbon, from a 250W 36V entry model to the carbon E23 with the longest published range in the catalogue — 80–100 km.
The mountain family is the technology showcase of the range. Carbon frames appear at the top (E23, E18-C, E18-B), full suspension runs through the middle (M11, M9, the M620 version of the M3, and the rear-suspended M3), and the base is a set of straightforward alloy hardtails on Bafang hub motors. Wheel sizes are 26, 27.5 and 29 inch; motors run from the TrunkRun M06 250W mid-drive in the M15 to the 1000W unit in the E18-C and M620 M3.
The E23 deserves a specific mention: a Bafang M600 mid-drive, a Samsung-cell 48V 20Ah battery — the largest in the catalogue — a carbon frame and handlebar, a RockShox 35 fork and a published range of 80–100 km. No other model in any family publishes a longer band. At the other end, the M2 and M15 are 36V models for buyers who need a lower price point without leaving the trail category.
Mountain Model Range
| Model | Motor | Battery | Range (PAS) | Max Speed | Payload |
|---|---|---|---|---|---|
| E23 | Bafang M600 mid-drive, 500W | Samsung-cell 48V 20Ah | 80–100 km | 55 km/h | 120 kg |
| E18-C | Bafang mid-drive, 1000W | LG 48V 15Ah | 31–60 km | 50 km/h | 120 kg |
| E18-B | Bafang mid-drive, 500W | LG 48V 15Ah | 31–60 km | 50 km/h | 120 kg |
| E10 | Bafang M600 mid-drive, 500W | LG 48V 15Ah | 30–50 km | 35 km/h | 120 kg |

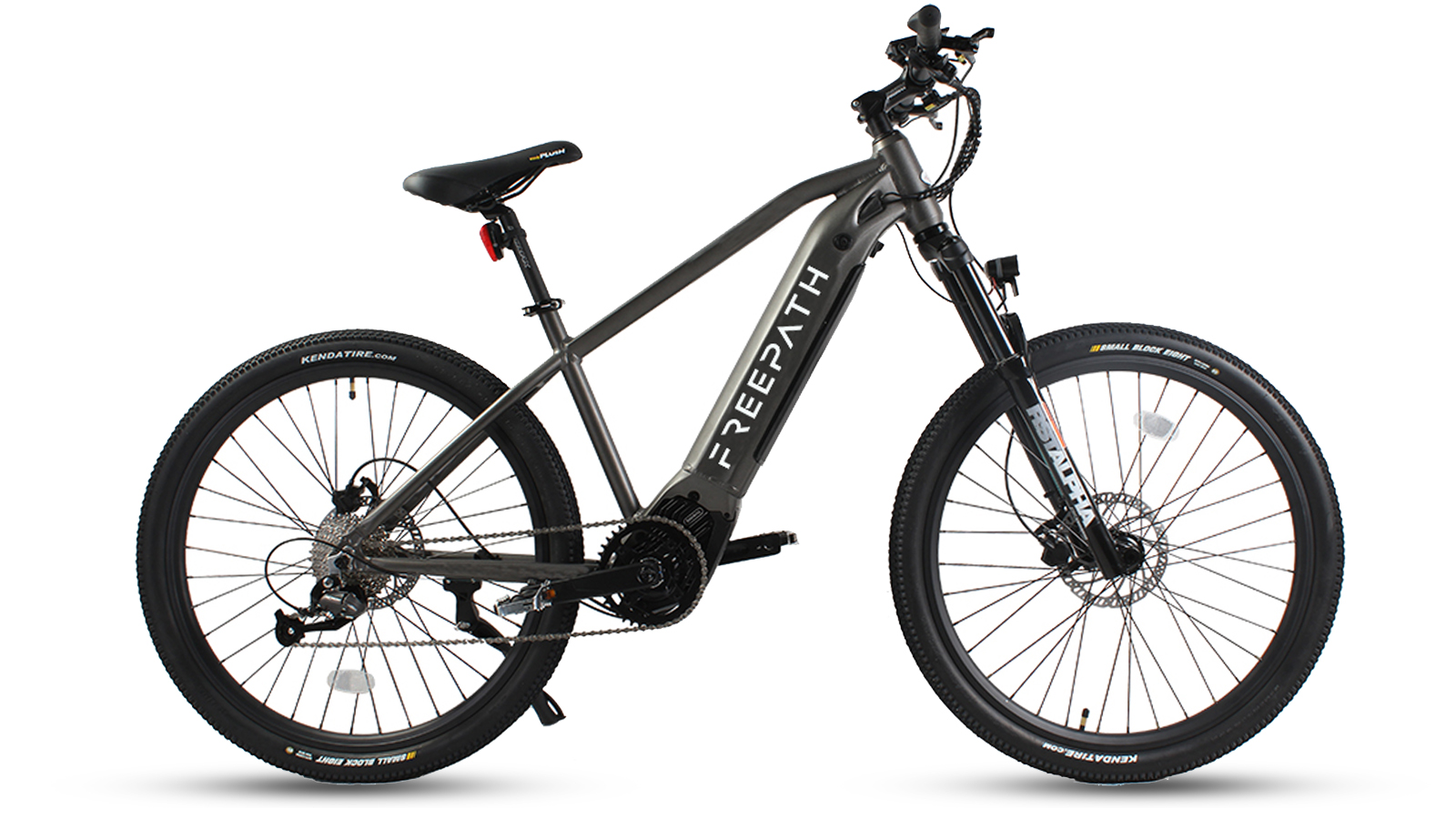

| M10 | Bafang M600 mid-drive, 500W | LG 48V 15Ah | 40–65 km | 42–45 km/h | 110 kg |
| M11 | Bafang Ultra/M600 mid-drive, 500W | LG 48V 15Ah | 31–60 km | 50 km/h | 120 kg |
| M9 | Bafang M400 MAX mid-drive, 350W | LG 48V 15Ah integrated | 31–60 km | 50 km/h | 120 kg |
| M3 (M620) | Bafang M620 mid-drive, 1000W | 48V 10Ah | 31–60 km | 50 km/h | 120 kg |
| M3 | Bafang rear hub, 500W | 48V 10Ah | 31–60 km | 50 km/h | 120 kg |
| M4 | Bafang rear hub, 500W | 48V 12.5Ah | 31–60 km | 50 km/h | 120 kg |
| M6 | Bafang rear hub, 500W | 48V 12.5Ah | 31–60 km | 50 km/h | 120 kg |
| M14 | Bafang rear hub, 500W | 48V 12.5Ah | 30–50 km | 35 km/h | 120 kg |
| M2 | Bafang G010 rear motor, 350W (36V) | 36V 10Ah frame battery | 25–30 km | 25 km/h | 150 kg |
| M5 | Rear hub, 350W (36V) | 36V 10.4Ah | 30–40 km | 30 km/h | 100 kg |
| M6A | Integrated-wheel motor, 350W (36V) | 36V 10Ah | 31–60 km | 40 km/h | 120 kg |
| M15 | TrunkRun M06 mid-drive, 250W (36V) | 36V 10Ah | 30–50 km | 35 km/h | 120 kg |
Two models share the M3 name with different builds — a 500W rear-hub version and a 1000W M620 mid-drive version; they are listed separately above and should be specified by motor when ordering. The E10's frame is 6061 alloy per its specification table (its page title says otherwise; the table governs). The E18-B is a 500W mid-drive per its specification table.
Choosing Inside the Family
Full suspension: M11, M9, M3 (M620) and the rear-suspended M3 — detailed on the full-suspension mountain page. Hardtail value: M3, M4, M6, M14 and M2 on the hardtail page. Carbon: E23, E18-C and E18-B are in the carbon fiber family. Folding trail: M5 and M6 fold; M6A folds on integrated wheels.
Questions Buyers Ask
Can I order samples first?
Yes — under the factory's published sample policy, spare units can be provided for sampling; the sample fee and courier cost are paid by the buyer. Confirm availability for the models you want when you inquire.
How long does production take?
The published lead time is 30–60 days after the advance payment is received, depending on the product category and order quantity. Ask us to confirm the schedule for the exact models in your inquiry.
Which mountain model has the longest range?
The E23, at a published 80–100 km on pedal assist, from a Samsung-cell 48V 20Ah battery. The next longest bands are the E18-A fat bike (40–65 km) and the M10 (40–65 km).
What certificates do the products carry?
Certificates available upon request. Send your target market in the inquiry and we will confirm which documentation can be provided for the models you are sourcing.
